제품 상세 정보:
|
| 상품 이름: | 드릴 파이프 회전 | 기계 유형: | 드릴 툴 |
|---|---|---|---|
| 재료: | 고 망간강 / 탄소강, 스테인레스 강 | 처리식: | 캐스팅 |
| 사용: | 좋은 훈련 | 장력 세기: | 100-5000KN |
| 색: | 고객들을 위해 설계되는 것으로서의 검정색 / | 적용 가능한 산업: | 에너지 & 광업 |
| 사이즈: | B/N/H/P WL 또는 관습 | 적당한 돌 범위: | 부드러운, 중앙 단단한, 하드 락 |
| 타입: | 드릴 파이프 회전 | ||
| 강조하다: | NC50 hdd barrel reamer,100KN hdd barrel reamer |
||

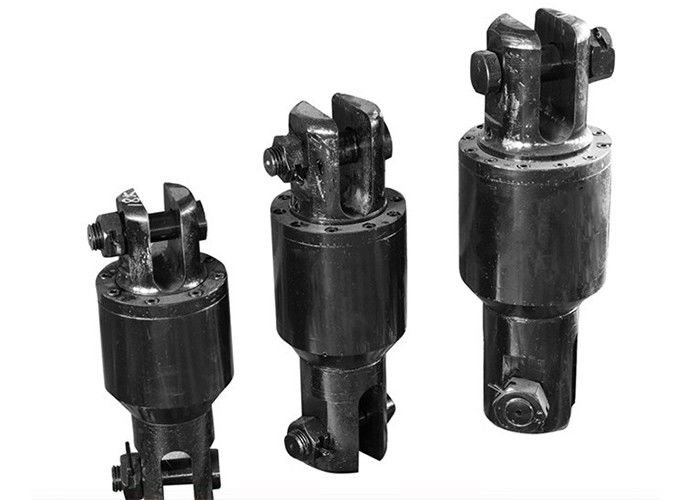

Carbon Steel Drill Pipe Swivel Use Well Drilling
Product Description
The swivel is manufactured from our factory, the advantage as following
It is made of high quality alloy, processing by quenching tempering, high mechanical performance, greatly abrasion resistance.
Sealing have two type: one is metal seal, another is rubber seal. Structure is stable, grease is not easy leak, increase using time.
It used special grease, not easy volatilizing, it is good for bearing using time.
It used annular contact thrust bearing of importing, loading power is greater.
| Type | Traction end connection mode | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | kg |
| 10T Swivel Series | Binaural | 28 | 99 | 317 | 28 | 33 | 10.5 |
| 15T Swivel Series | Binaural | 32 | 109 | 360 | 32 | 38 | 19 |
| 18T Swivel Series | Binaural | 32 | 136 | 352 | 30 | 35 | 20.5 |
| 20T Swivel Series | Binaural | 36 | 146 | 415 | 36 | 44 | 26.5 |
| 25T Swivel Series | Binaural | 38 | 156 | 433 | 38 | 42 | 29 |
| 30T Swivel Series | Binaural | 39 | 166 | 477 | 40 | 50 | 41 |
| 40T Swivel Series | Binaural | 42 | 192 | 543 | 48 | 60 | 70 |
| 50T Swivel Series | Binaural | 61 | 210 | 571 | 59 | 75 | 100 |
| A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | kg | ||
| 50T Swivel Series | NC31 | 60 | 210 | 571 | 60 | 75 | 100 |
| 60T Swivel Series | NC38 | 65 | 234 | 672 | 65 | 90 | 125 |
| 80T Swivel Series | NC46 | 65 | 244 | 697 | 65 | 90 | 175 |
| 100T Swivel Series | NC50 | 85 | 270 | 821 | 84 | 108 | 240 |
| 150T Swivel Series | NC50 | 100 | 314 | 904 | 102 | 135 | 330 |
| 200T Swivel Series | NC50,5-1-2FH | 110 | 340 | 1177 | 118 | 150 | 415 |
| 300T Swivel Series | NC50,5-1-2FH | 125 | 390 | 1282 | 122 | 173 | 800 |
| 400T Swivel Series | 6-5-8FH | 150 | 480 | 1530 | 150 | 216 | 940 |
| 500T Swivel Series | 6-5-8FH | 170 | 570 | 1651 | 192 | 248 | 2010 |
Features
Swivel cap complete with lifting bail for hoisting cable applications.
Specially designed bearing lubrication keeps contaminants away and relieves excess lubrication pressure.
Suitable for use with water or drilling mud.
Easy servicing in the field with common tools.
Majority of components are common with underground compact plus water swivel.
FAQ
Q: What is your delivery time?
A: It usually takes 20 days to produce. Within 3 days (if there is stock).
Q: How to control the quality?
A: Before shipping, we should check and test each drill rod.
Q: Do you agree to order samples?
A: Yes, we welcome your sample order to test our quality.
Q: Has your drill pipe been heat treated?
A: Yes, our heat treatment of drill pipe and casing.
Q: Does your drill pipe have anti-rust function?
A: Yes, each drill pipe and casing will be anti-rust with paint or anti-corrosion oil before transportation. If you need galvanized pipe, please contact us.
