제품 상세 정보:
|
| 처리식: | 위조 | 기계 유형: | 드릴링 장비 |
|---|---|---|---|
| 타입: | 교련 관 | 장점: | 확실한 물질과 긴 서비스 라이프 |
| OD A: | 4 1/2” | 벽 비: | 0.337" |
| 길이 Ｌ: | 25' 20' | 중량 1bs: | 415 |
| 슈펠데르크로부터의 Dist: | 3" | 평평한 Ｅ를 가로질러: | 3 1/2” |
| 휴회 DIA Ｆ: | 3 1/2” | 휴회 위치 Ｈ: | 3 1/2” |
| 휴식 길이 Ｋ: | 5" | 마법 Ｍ를 가로질러: | 3 3/8" |
| 연결: | 4" | P/M: | 3 1/2 Reg-2 7/8 조건 |
| 강조하다: | 415lbs 4.5 drill pipe,4.5inch oil well casing pipe,415lbs oil well casing pipe |
||

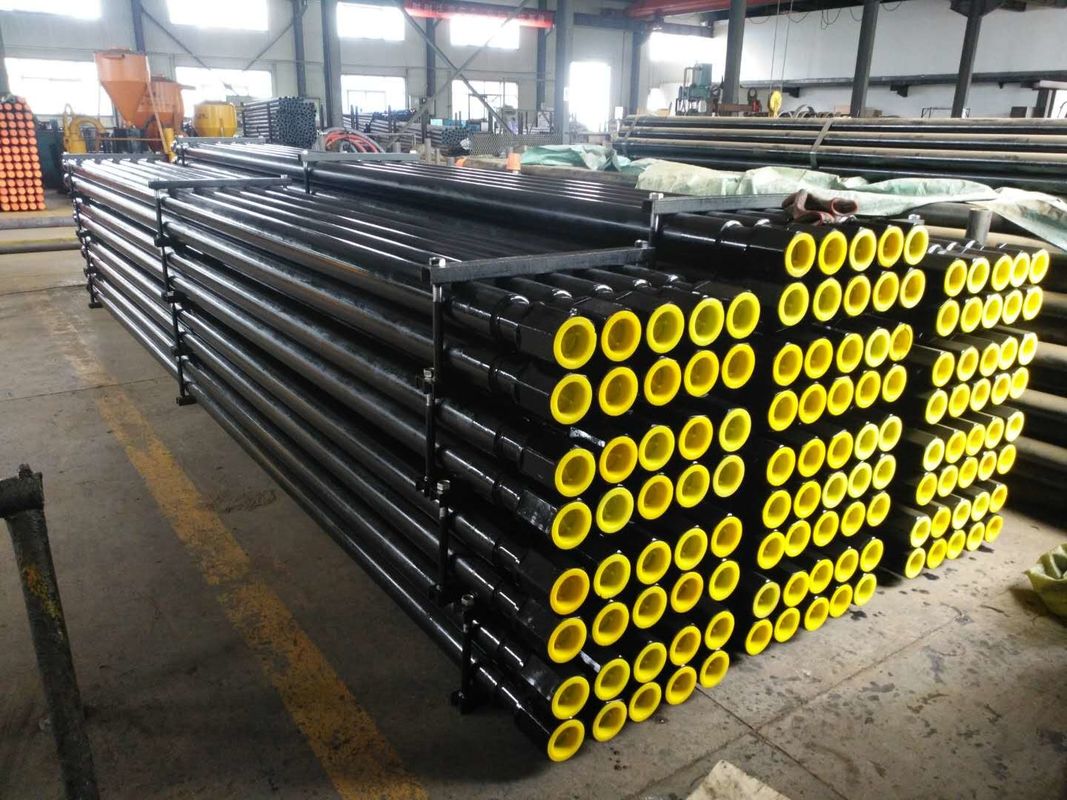

Reliable Material Ingersoll Rand Drill Pipe 4 1/2" Drill Rod
Description
It is used for sand control in wells with high pressure and high traction value due to the depths.
Having the API casing inside a wire wrap screen jacket is supporting the screen and enhance the cabapitities and high tensil strength Loads.
Pipe base can be made from API pipe Seamless casing spiral or stainless steel casing
| Processing type | Forging |
| Machine type | Drilling Equipment |
| Type | Drill Pipe |
| Advantage | Reliable Material And Long Service Life |
| OD A | 4 1/2" |
| Wall B | 0.337" |
| Length L | 25' |
| Weight 1bs | 415 |
| Dist From ShoulderC | 3" |
| Across Flat E | 3 1/2" |
| Recess DIA F | 3 1/2" |
| Recess Location H | 3 1/2" |
| Recess Length K | 5" |
| Across Hex M | 3 3/8" |
| Connection | 4" |
| P/M | 3 1/2 Reg |
Products Advantages
Long service life
All threads and sealing surfaces shall be phosphated to prevent sticking and corrosion.
The wear-resistant belt and pad of the joint can prolong service life.
Production equipments imported from germany
Each heat treatment welding zone is quenched and tempered by heat treatment system to ensure the strength and toughness of the welding zone and the quality is stable.
Application
Transportation of oil,gas or fluid,Construction,
Electricity,Machine building industy,
Chemical industy,Petroleum,Traffic.
Drill pipe usage notes
1. New drill pipe should be pasted thread oil before connection
2. Make up and break at least 3 times before drilling
3. Hard bending and plastic coating can be processed according to costumer special requirement.
Our Services
1. Drill pipe strictly according to API ISO9001 standard
2. If you found to quality problems within one month of the package returned.
3. All strictly according to the contract and fulfill the obligations and responsibilities
4. 24 hours online customer service,feel free contact us.
