제품 상세 정보:
|
| 상품 이름: | 공압 배관 라밍 망치 | 적용 가능한 산업: | 에너지 & 광업 |
|---|---|---|---|
| 타입: | 래밍 망치 | 기계 유형: | 드릴링 장비 |
| 재료: | 탄소강 | 처리식: | 위조 / 캐스팅 |
| 사용: | 좋은 훈련 | 모델: | BH190S |
| 호스트 외경 (밀리미터): | 186/194 | 숙주 길이 (밀리미터): | 1320년 |
| 숙주 체중 (킬로그램): | 160 | 공기소비량 (m3/min): | 2-6 |
| 기압 (Mpa): | 0.4-0.7 | 즉각적 최대의 영향 (kN): | 1500년 |
| 지름 (밀리미터)을 놓는 적용 가능한 파이프: | 89-273 | 지름 (밀리미터)을 놓는 표준 파이프: | 108、159、219 |
| 강조하다: | Pneumatic Pipe Ramming Hammer 1320mm,194mm Pneumatic Pipe Ramming Hammer,1320mm pipe rammer drill |
||

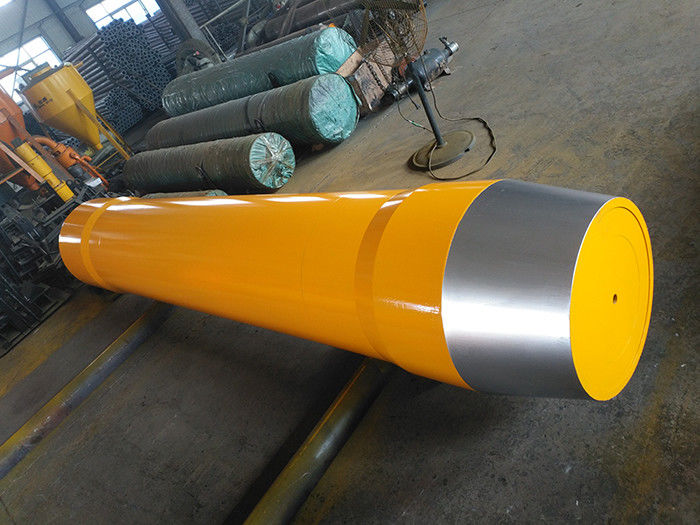

BH190S Host Length 1320mm Pneumatic Pipe Ramming Hammer
Product Description
BH Series Pneumatic Rammer, is a new equipment used for trenchless laying pipelines underground, suitable for the clay layer, sub-clay layer, sand gravel soil, miscellaneous formation to lay down pipeline which diameter less than 1200mm, and in the short distance.
| Model | Host outer diameter (mm) | Host length (mm) | Host weight (kg) | Air consumption (m3/min) | Air pressure (MPa) | Instant maximum impact (kN) | Applicable pipe laying diameter (mm) | Standard pipe laying diameter (mm) |
| BH190S | 186/194 | 1320 | 160 | 2-6 | 0.4-0.7 | 1500 | 89-273 | 108,159,219 |
| BH260 | 260/265 | 1390 | 320 | 3-8 | 0.4-0.7 | 2600 | 159-426 | 273,325,426 |
| BH300 | 290/300 | 2100 | 750 | 4-11 | 0.4-0.7 | 4500 | 219-630 | 325,426,529 |
| BH350 | 350/365 | 2400 | 1200 | 6~17 | 0.4-0.7 | 6000 | 273-Φ820 | 426,529,630 |
| BH420 | 415/425 | 2800 | 1950 | 9-21 | 0.4-0.7 | 8000 | 325-1200 | 426,529,630 |
| BH510 | 510/520 | 3200 | 3400 | 12-28 | 0.4-0.7 | 12000 | 426~1500 | 630,720,820 |
| BH610 | 610/620 | 3400 | 5100 | 20-40 | 0.4-0.7 | 20000 | 529-1800 | 820,920,1020 |
| BH650 | 620/650 | 3600 | 5500 | 20-50 | 0.4-0.9 | 25000 | 529~2200 | 820,920,1020 |
| BH700 | 700/710 | 3680 | 7100 | 28-60 | 0.4-0.7 | 28000 | 630-2500 | 1020,1120,1220 |
Advantage
Anvil after clamping
The back anvil is the mark of BAIWEI perforation tool design. The clamping load provided by this function is 200% higher than that of competing products, making it the safest component on the market.
Forward wear ring
The one-piece striker contains a set of wear rings that eliminate metal-to-metal contact, thereby providing a sustained level of performance.
Collet jack
For larger size collets, BAIWEI provides collet lifters, which can easily move, load and unload heavy collets on site.
Accessories
BAIWEI provides a wide range of ramming accessories, such as lubrication systems, seal kits, balanced collet lifters, pipe pigs and plunger sleeves. All these are designed to make your next job more efficient.
FAQ
Q: What is your delivery time?
A: It usually takes 20 days to produce. Within 3 days (if there is stock).
Q: How to control the quality?
A: Before shipping, we should check and test each drill rod.
Q: Do you agree to order samples?
A: Yes, we welcome your sample order to test our quality.
Q: Has your drill pipe been heat treated?
A: Yes, our heat treatment of drill pipe and casing.
Q: Does your drill pipe have anti-rust function?
A: Yes, each drill pipe and casing will be anti-rust with paint or anti-corrosion oil before transportation. If you need galvanized pipe, please contact us.
