제품 상세 정보:
|
| 상품 이름: | 공압 배관 라밍 망치 | 적용 가능한 산업: | 에너지 & 광업 |
|---|---|---|---|
| 타입: | 래밍 망치 | 기계 유형: | 드릴링 장비 |
| 재료: | 탄소강 | 처리식: | 위조 / 캐스팅 |
| 사용: | 좋은 훈련 | 모델: | BH420 |
| 호스트 외경 (밀리미터): | 415/425 | 숙주 길이 (밀리미터): | 2800 |
| 숙주 체중 (킬로그램): | 1950 | 공기소비량 (m3/min): | 9-21 |
| 기압 (Mpa): | 0.4-0.7 | 즉각적 최대의 영향 (kN): | 8000 |
| 지름 (밀리미터)을 놓는 적용 가능한 파이프: | 325-1200 | 지름 (밀리미터)을 놓는 표준 파이프: | 426,529,630 |
| 강조하다: | L2800mm Pneumatic Pipe Ramming Hammer,425mm OD. pipe rammer,425mm OD Pneumatic Pipe Ramming Hammer |
||

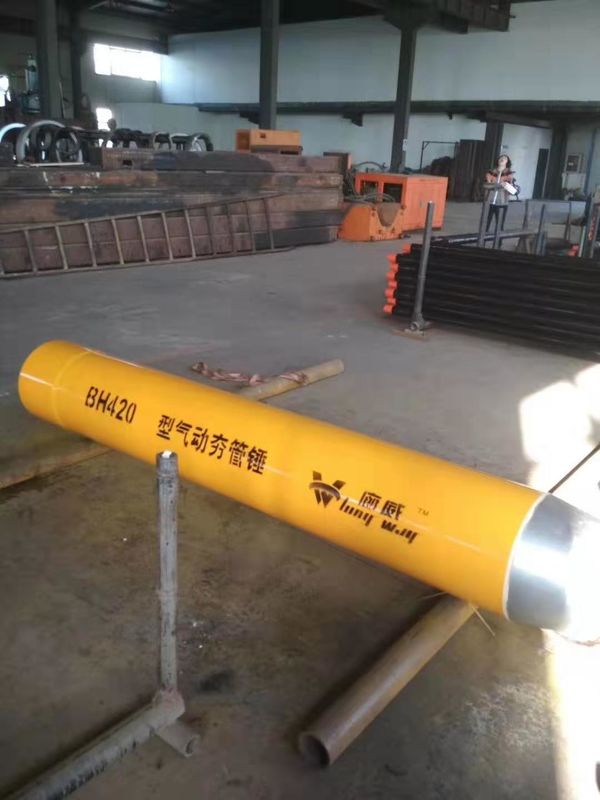

BH420 425mm Host Outer Diameter Pneumatic Pipe Ramming Hammer
Product Description
The machine has the characteristic of high precision for pipe laying,larger diameter for the pipe to be laid, strong adaptability of formations, the equipment is simple, less investment, lower construction cost. Rammer is essentially a impactor with low frequency, large pneumatic hammer impact energy. It is a machine with the compressed air power to drive the cylinde in the hammer blow hammering block.
| Model | Host outer diameter (mm) | Host length (mm) | Host weight (kg) | Air consumption (m3/min) | Air pressure (MPa) | Instant maximum impact (kN) | Applicable pipe laying diameter (mm) | Standard pipe laying diameter (mm) |
| BH190S | 186/194 | 1320 | 160 | 2-6 | 0.4-0.7 | 1500 | 89-273 | 108,159,219 |
| BH260 | 260/265 | 1390 | 320 | 3-8 | 0.4-0.7 | 2600 | 159-426 | 273,325,426 |
| BH300 | 290/300 | 2100 | 750 | 4-11 | 0.4-0.7 | 4500 | 219-630 | 325,426,529 |
| BH350 | 350/365 | 2400 | 1200 | 6~17 | 0.4-0.7 | 6000 | 273-Φ820 | 426,529,630 |
| BH420 | 415/425 | 2800 | 1950 | 9-21 | 0.4-0.7 | 8000 | 325-1200 | 426,529,630 |
| BH510 | 510/520 | 3200 | 3400 | 12-28 | 0.4-0.7 | 12000 | 426~1500 | 630,720,820 |
| BH610 | 610/620 | 3400 | 5100 | 20-40 | 0.4-0.7 | 20000 | 529-1800 | 820,920,1020 |
| BH650 | 620/650 | 3600 | 5500 | 20-50 | 0.4-0.9 | 25000 | 529~2200 | 820,920,1020 |
| BH700 | 700/710 | 3680 | 7100 | 28-60 | 0.4-0.7 | 28000 | 630-2500 | 1020,1120,1220 |
Advantage
Push chuck
The BAIWEI tamper tool can be set into a conical locking chuck, thereby reducing the time for setting up and disassembly. The chuck can be fully engaged with the steel housing by 6 inches (152 mm), thereby firmly locking the tip of the knife on the housing, eliminating the need for a support frame, and reducing the opening of the sleeve, thereby saving working time.
Collet jack
For larger size collets, BAIWEI provides collet lifters, which can easily move, load and unload heavy collets on site.
Accessories
BAIWEI provides a wide range of ramming accessories, such as lubrication systems, seal kits, balanced collet lifters, pipe pigs and plunger sleeves. All these are designed to make your next job more efficient.
Our Services
1. The drill pipe is strictly in accordance with API ISO9001 standard
2. If you find quality problems within one month after returning the package.
3. All fulfill obligations and responsibilities in strict accordance with the contract
4. 24 hours online customer service, please feel free to contact us.
