제품 상세 정보:
|
| 상품 이름: | 드릴 파이프 회전 | 기계 유형: | 드릴 툴 |
|---|---|---|---|
| 재료: | 고 망간강 / 탄소강, 스테인레스 강 | 처리식: | 캐스팅 |
| 사용: | 좋은 훈련 | 장력 세기: | 100-5000KN |
| 색: | 고객들을 위해 설계되는 것으로서의 검정색 / | 적용 가능한 산업: | 에너지 & 광업 |
| 사이즈: | B/N/H/P WL 또는 관습 | 적당한 돌 범위: | 부드러운, 중앙 단단한, 하드 락 |
| 타입: | 드릴 파이프 회전 | ||
| 강조하다: | 50T 드릴 파이프 Swivel,210mm 드릴 파이프 Swivel,210mm 굴착 장치 성분 |
||

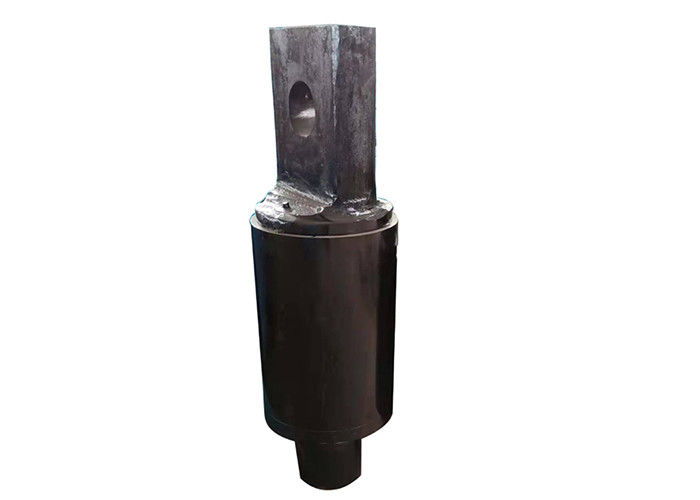

High Quality Drilling Rig Swivel Head With Kelly Bar Spinner
Product Description
Our rotary joints are wear-resistant and weigh from 10 tons to 100 tons. All U-shaped clamps, pull rings and threaded connection styles are available.
Make sure to keep the swivel clean and lubricated, and never exceed the rated pushback capability.
| Type | Traction end connection mode | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | kg |
| 10T Swivel Series | Binaural | 28 | 99 | 317 | 28 | 33 | 10.5 |
| 15T Swivel Series | Binaural | 32 | 109 | 360 | 32 | 38 | 19 |
| 18T Swivel Series | Binaural | 32 | 136 | 352 | 30 | 35 | 20.5 |
| 20T Swivel Series | Binaural | 36 | 146 | 415 | 36 | 44 | 26.5 |
| 25T Swivel Series | Binaural | 38 | 156 | 433 | 38 | 42 | 29 |
| 30T Swivel Series | Binaural | 39 | 166 | 477 | 40 | 50 | 41 |
| 40T Swivel Series | Binaural | 42 | 192 | 543 | 48 | 60 | 70 |
| 50T Swivel Series | Binaural | 61 | 210 | 571 | 59 | 75 | 100 |
| A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | kg | ||
| 50T Swivel Series | NC31 | 60 | 210 | 571 | 60 | 75 | 100 |
| 60T Swivel Series | NC38 | 65 | 234 | 672 | 65 | 90 | 125 |
| 80T Swivel Series | NC46 | 65 | 244 | 697 | 65 | 90 | 175 |
| 100T Swivel Series | NC50 | 85 | 270 | 821 | 84 | 108 | 240 |
| 150T Swivel Series | NC50 | 100 | 314 | 904 | 102 | 135 | 330 |
| 200T Swivel Series | NC50,5-1-2FH | 110 | 340 | 1177 | 118 | 150 | 415 |
| 300T Swivel Series | NC50,5-1-2FH | 125 | 390 | 1282 | 122 | 173 | 800 |
| 400T Swivel Series | 6-5-8FH | 150 | 480 | 1530 | 150 | 216 | 940 |
| 500T Swivel Series | 6-5-8FH | 170 | 570 | 1651 | 192 | 248 | 2010 |
Features
The characteristics of "BAIWEI" drill rods
Two force regions
The threads of the non-dig drill pipe produced in the company have two Force regions. Such structure is designed to reduce the resistance that A drill faces during the construction process. The pipes are designed to handle high torque while retaining a large inside Diameter for superior drilling fluid flow so that the threads will not deform.
Optimal design
Drill rods through the dispersion of equal strength And stress optimal design, can give full play to the Potential of drill material.
Forged connector
Connector material had been forged, that have Improved material density, changed the fibrous Texture of the material, so that the general mechanical Properties of the material have been more improved Nitride, phosphide or copper plating processing Nitride, phosphide or copper plate processing to the rod ends Have ensured thread anti-corrosion, anti-bonding, and improved Joint surface fatigue resistance.
Upsetting & thicking
Upsetting & thicking to the rods have improved The metallurgical structure and enhanced the Impact toughness, that have ensured comprehensive Mechanical properties and the friction weld seals Not be broken.
FAQ
Q: What is your delivery time?
A: It usually takes 20 days to produce. Within 3 days (if there is stock).
Q: How to control the quality?
A: Before shipping, we should check and test each drill rod.
Q: Do you agree to order samples?
A: Yes, we welcome your sample order to test our quality.
Q: Has your drill pipe been heat treated?
A: Yes, our heat treatment of drill pipe and casing.
Q: Does your drill pipe have anti-rust function?
A: Yes, each drill pipe and casing will be anti-rust with paint or anti-corrosion oil before transportation. If you need galvanized pipe, please contact us.
