제품 상세 정보:
|
| 상품 이름: | HDD 도구 | 적용 가능한 산업: | 건설 작업, 에너지 & 마이닝, 인프라 구축 |
|---|---|---|---|
| 타입: | 리머 | 기계 유형: | 드릴 툴 |
| 재료: | 강철 | 처리식: | 캐스팅 |
| 외부 직경: | 200mm-1000mm | 애플리케이션: | 지향식 수평 굴착 |
| 용법: | 지향식 수평 굴착 장비를 위해 | OEM 서비스: | 받아들이세요 |
| 강조하다: | 200mm Hdd Drill Bits Pilot,17KG Hdd Drill Bits Pilot |
||

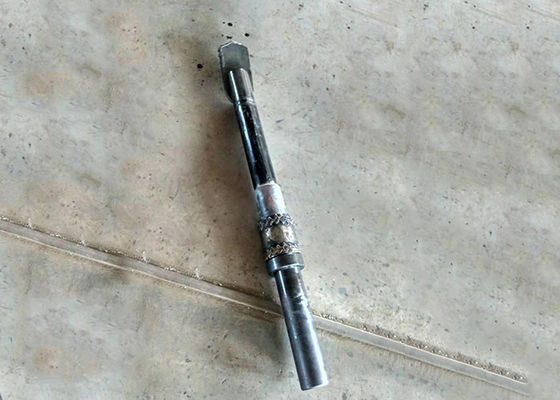

Pilot Guide Bit Drilling Tool Application Horizontal Directional Drilling
Product Description
A unique and time saving bit, the double panel pilot bit is perfect for making openings and slots in veneers and laminates. The lower portion of the cutting edge is located under the bearing and allows you to cut on both sides of the material. Durable carbide tipped cutters are spaced 12mm (15/32") apart and each cutter can work in stock up to 18mm (23/32") thick.
| Type | Type of threads (K) | External diameter (B) | Carbon storehouse size (L) | Weight (KG) |
| 73 Drill Head Series | 50 Drill pipe threads | Φ73 | 380 | 17 |
| 83 Drill Head Series | 60 Drill pipe threads | Φ83 | 380/480 | 23/27 |
| 83 Drill Head Series | 73 Drill pipe threads | Φ83 | 380/480 | 25/29 |
| 88 Drill Head Series | 76 Drill pipe threads | Φ88 | 380/480 | 26/30 |
| 93 Drill Head Series | 83 Drill pipe threads | Φ93 | 380/480 | 32/36 |
| 108 Drill Head Series | 89 Drill pipe threads | Φ108 | 380/480 | 44/48 |
| 127 Drill Head Series | 102 Drill pipe threads | Φ127 | 380/480 | 73/78 |
| 168 Long Drill Head Series | 127 Drill pipe threads | Φ168 | 480 | 150 |
| 194 Long Drill Head Series | 140 Drill pipe threads | Φ194 | 480 | 270 |
Features
Formation:suitable for sand and medium to very hard soil
Structure:steel casing,welded
Connection with drill rod:octagonal connection direct connection with drill rod
Connection with laid pipe:within or without swivel
FAQ
Q: What is your delivery time?
A: It usually takes 20 days to produce. Within 3 days (if there is stock).
Q: How to control the quality?
A: Before shipping, we should check and test each drill rod.
Q: Do you agree to order samples?
A: Yes, we welcome your sample order to test our quality.
Q: Has your drill pipe been heat treated?
A: Yes, our heat treatment of drill pipe and casing.
Q: Does your drill pipe have anti-rust function?
A: Yes, each drill pipe and casing will be anti-rust with paint or anti-corrosion oil before transportation. If you need galvanized pipe, please contact us.
