제품 상세 정보:
|
| 타입: | DTH 파이프 | 기계 유형: | 드릴링 장비 |
|---|---|---|---|
| 재료: | 높은 망간 강철 | 처리식: | 위조 |
| 사용: | 좋은 훈련 | 애플리케이션: | 착정기, DTH 드릴링, 석탄 드릴링, 채석업 |
| 압력: | 고압 | 지름: | 50 밀리미터 내지 159 밀리미터 |
| 길이: | 15FT/20FT/25FT | 색: | 요구 |
| 장점: | 고성능 | 용법: | 좋은 훈련 |
| 강조하다: | API Welding Drill Pipe,5inch Welding Drill Pipe,API oil well casing pipe |
||

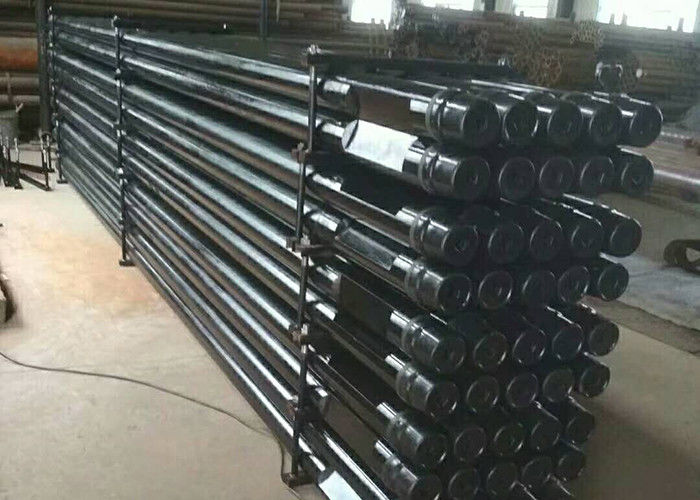

Hard Bending High Strength Deep Well Drill Pipe
Product Description
This DTH drill pipe, the shortened form of down the hole drill pipe, is a kind of outer flat drill rod. It is mainly used in rotary percussive drilling that contains gases and liquids. Its main components include pipe (rod) body and joint.
Our down the hole drill pipe is manufactured based on the API standards. And according to specific requirements, we also provide this kind of TH drill pipe in different Chinese and American specifications.
| OD A |
Wall B |
Length L |
Weight lbs |
ID Pin C |
Across Flat D |
Flat Length E |
Dist From Shoulder F |
Flat Length G |
Across Flat H |
Connection |
| 3.5" | .315" | 20' | 245 | 1.75" | 2.75" | 12.5" | 3.25" | 2.25" | 3.25" | 2 3/8IF |
| 4.5" | .337" | 20' | 345 | 1.75" | 3" | 12.5" | 3.25" | 2.375" | 4" | 3 1/2 Reg |
| 4 1/2" | .337" | 20' | 345 | 2 1/8" | 3" | 12 1/2" | 3 1/4" | 2 3/8" | 4" | 2 7/8 IF |
| 4 1/2" | .337" | 25' | 430 | 1 3/4" | 3" | 12 1/2" | 3 1/4" | 2 3/8" | 4" | 3 1/2 Reg |
| 4 1/2" | .337" | 25' | 430 | 2 1/8" | 3" | 12 1/2" | 3 1/4" | 2 3/8" | 4" | 2 7/8 IF |
| 4 1/2" | .337" | 30' | 510 | 1 3/4" | 3" | 12 1/2" | 3 1/4" | 2 3/8" | 4" | 3 1/2 Reg |
| 4 1/2" | .500" | 25' | 510 | 1 3/4" | 3" | 12 1/2" | 3 1/4" | 2 3/8" | 4" | 3 1/2 Reg |
| 4 1/2" | .500" | 30' | 615 | 1 3/4" | 3" | 12 1/2" | 3 1/4" | 2 3/8" | 4" | 3 1/2 Reg |
| 4 1/2" | .750" | 25' | 805 | 1 3/4" | 3" | 12 1/2" | 3 1/4" | 2 3/8" | 4" | 3 1/2 Reg |
| 5" | .500" | 25' | 695 | 1 3/4" | 3" | 12 1/2" | 3 1/4" | 2 3/8" | 4" | 3 1/2 Reg |
| 5" | .500" | 30' | 775 | 1 3/4" | 3" | 12 1/2" | 3 1/4" | 2 3/8" | 4" | 3 1/2 Reg |
| 5" | .750" | 30' | 1100 | 1 3/4" | 3" | 12 1/2" | 3 1/4" | 2 3/8" | 4" | 3 1/2 Reg |
| 5" | .750" | 25' | 930 | 1 1/2" | 3" | 12 1/2" | 3 1/4" | 2 3/8" | 4 5/8" | 3 1/2 Beco |
| 5 1/2" | .750" | 25' | 1045 | 1 1/2" | 3" | 12 1/2" | 3 1/4" | 2 3/8" | 4 5/8" | 3 1/2 Beco |
| 5 1/2" | .750" | 30' | 1240 | 1 1/2" | 3" | 12 1/2" | 3 1/4" | 2 3/8" | 4 5/8" | 3 1/2 Beco |
Drill pipe usage notes
1. New drill pipe should be oiled before connecting
2. Trim and break at least 3 times before drilling
3. Hard bending and plastic coating can be processed according to the special requirements of customers
FAQ
Q: What is your delivery time?
A: It usually takes 20 days to produce. Within 3 days (if there is stock).
Q: How to control the quality?
A: Before shipping, we should check and test each drill rod.
Q: Do you agree to order samples?
A: Yes, we welcome your sample order to test our quality.
Q: Has your drill pipe been heat treated?
A: Yes, our heat treatment of drill pipe and casing.
Q: Does your drill pipe have anti-rust function?
A: Yes, each drill pipe and casing will be anti-rust with paint or anti-corrosion oil before transportation. If you need galvanized pipe, please contact us.
