제품 상세 정보:
원래 장소: 중국
브랜드 이름: Longway
모델 번호: KX50/80
결제 및 배송 조건:
최소 주문 수량: 1
포장 세부 사항: 판지 상자
배달 시간: 5-8 일
지불 조건: t/t

Pipeline Bursting Equipment Pipeline In-Situ Replacement System Trenchless Drilling Tool

설명
로드: 500kn 최대 풀백 속도: 1.5m/min
최소 풀백 속도: 0.8m/min 힘: 4kw
호스트의 크기: 480*400*400mm 유압 스테이션 크기: 800*550*500mm
호스트 무게: 120kg 유압 스테이션 중량: 140kg
맨홀 직경: 420mm 잘 치수가 필요합니다: 800mm
로드 사양: 60*500mm

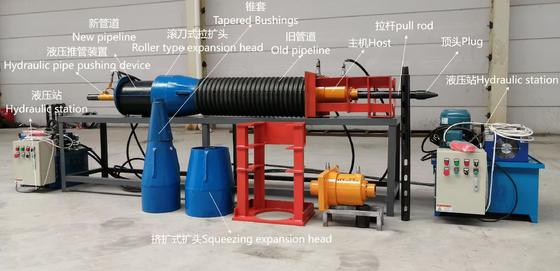

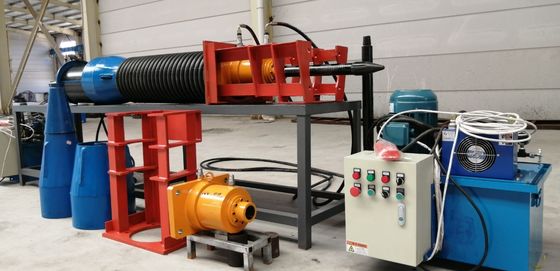

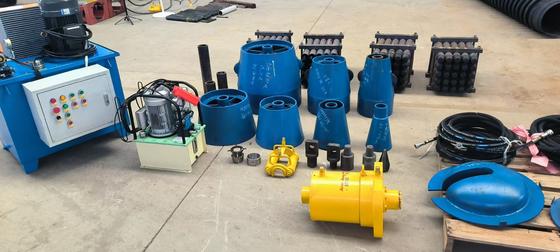

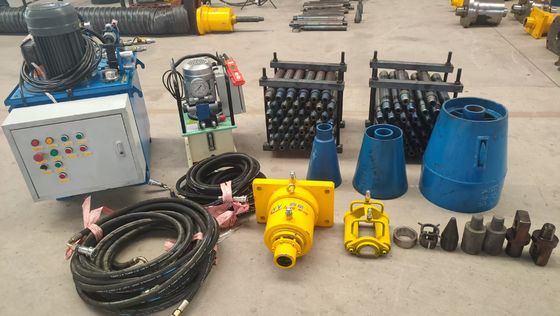

1. The pipeline in-situ replacement system independently developed by our company is mainly composed of the main unit, pull rods, cone sleeves, pulling-expanding heads, hydraulic pipe pushing devices, hydraulic stations (in two sizes), and top heads, and is suitable for the renovation construction of old urban pipelines.

2. Main component descriptions of the pipe bursting machine

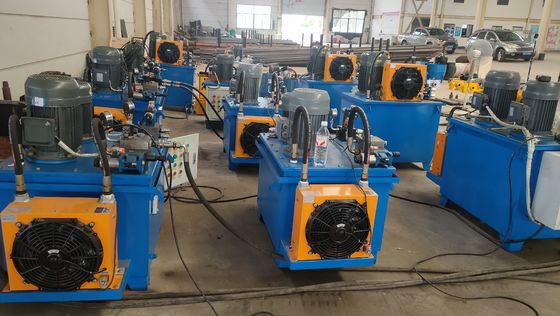

2.1 Hydraulic station: Equipped with automatic direction change and leakage self-protection functions. The electromagnetic valves support manual/automatic switching. Operators can operate in the well by holding a remote control.

2.2 Threaded pull rods: Adopting an insert-free design, it can achieve automatic retraction of the rods, effectively reducing the labor intensity of workers and improving construction efficiency.

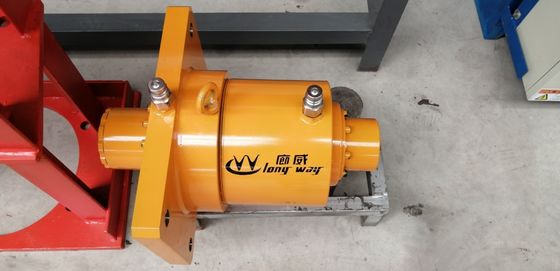

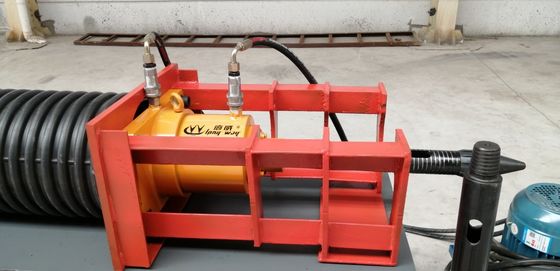

2.3 Main unit: Compact structure, light weight, convenient for well entry operation; unique threaded pull rod mode, can achieve automatic retraction of the rods without the need for inserts.

2.4 Pulling-expanding heads: The blades are of rolling type and have undergone quenching treatment, which can effectively avoid the accumulation of debris in the old pipeline and have a long service life.

2.5 Hydraulic pipe pushing device: Combined with the slips and cone sleeves, it can lock the new pipeline at any position.

Pipeline Bursting Equipment Pipeline In-Situ Replacement System Trenchless Drilling Tool 0Pipeline Bursting Equipment Pipeline In-Situ Replacement System Trenchless Drilling Tool 1
