제품 상세 정보:
|
| 재료: | 플라스틱과 강철 | 기계 유형: | 리머 |
|---|---|---|---|
| 코팅: | 맞춤화됩니다 | 색: | 요구위에 코팅하기 |
| 상술: | Φ500 | 다지개: | Φ89 |
| 길이: | 80 / 450 | 버클 유형: | Φ73/76drill 파이프 버클은 권고됩니다 |
| 강조하다: | O.D.200mm Fluted Reamer,80/450 Length Fluted Reamer,16 Inches hdd back reamers |
||

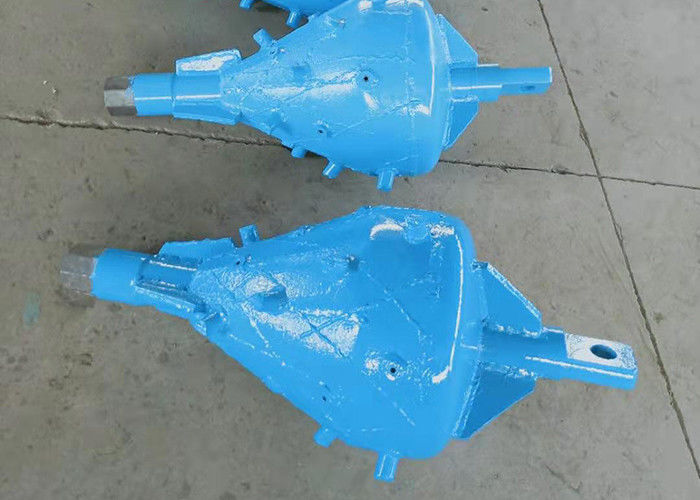

Barrel Reamer With Cutter From Size O.D.200mm Hole Opener Fluted Reamer Back Reamer
Product Description
Slot reamer (φ200-φ1800).
Suitable for sand and medium to very hard soil formations.
Structure: Steel castings.
Connect with drill pipe: directly connect with drill pipe; octagonal connection.
Connection with pipeline: with and without rotation.
| serial number |
1 | 2 | 3 | 4 | ||||||
| Specification (D) | Dabber (B) | Length (C) | Length (E) | Dabber (B) | Length (C) | Length (E) | Dabber (B) | Length (C) | Length (E) | |
| 1 | Φ200 | 60 | 50 | 280 | 68 | 50 | 330 | Φ76 | 60 | 400 |
| 2 | Φ250 | Φ60 | 50 | 280 | Φ68 | 50 | 330 | Φ76 | 60 | 400 |
| 3 | Φ300 | 60 | 50 | 280 | 68 | 50 | 330 | Φ76 | 60 | 400 |
| 4 | Φ400 | Φ60 | 50 | 280 | 68 | 50 | 330 | Φ76 | 60 | 400 |
| 5 | 500 | Φ60 | 50 | 280 | Φ68 | 50 | 330 | 76 | 60 | 400 |
| 6 | Φ600 | Φ60 | 50 | 280 | Φ68 | 50 | 330 | Φ76 | 60 | 400 |
| 7 | Buckle type (A) | Φ50 drill pipe buckles are recommended |
60 drill pipe buckles are recommended |
73 drill pipe buckles are recommended |
||||||
| serial number |
1 | 5 | 6 | 7 | ||||||
| Specification (D) | Dabber (B) | Length (C) | Length (E) | Dabber (B) | Length (C) | Length (E) | Dabber (B) | Length (C) | Length (E) | |
| 1 | Φ200 | Φ89 | 80 | 450 | 95 | 80 | 450 | Φ102 | 110 | 450 |
| 2 | Φ250 | Φ89 | 80 | 450 | 95 | 80 | 450 | Φ102 | 110 | 450 |
| 3 | Φ300 | Φ89 | 80 | 450 | 95 | 80 | 450 | Φ102 | 110 | 450 |
| 4 | Φ400 | Φ89 | 80 | 450 | 95 | 80 | 450 | Φ102 | 110 | 500 |
| 5 | Φ500 | Φ89 | 80 | 450 | 95 | 80 | 450 | Φ102 | 110 | 500 |
| 6 | Φ600 | Φ89 | 80 | 450 | Φ95 | 80 | 450 | Φ102 | 110 | 500 |
| 7 | Buckle type (A) | Φ73/76drill pipe buckles are recommended |
Φ83 drill pipe buckles are recommended |
Φ89 drill pipe buckles are recommended |
||||||
| serial number |
1 | 8 | 9 | 10 | ||||||
| Specification (D) | Dabber (B) | Length (C) | Length (E) | Dabber (B) | Length (C) | Length (E) | Dabber (B) | Length (C) | Length (E) | |
| 1 | Φ200 | Φ108 | 110 | 450 | ||||||
| 2 | 250 | Φ108 | 110 | 450 | ||||||
| 3 | Φ300 | 108 | 110 | 450 | Φ121 | 110 | 550 | |||
| 4 | Φ400 | Φ108 | 110 | 500 | Φ121 | 110 | 550 | Φ127 | 110 | 550 |
| 5 | Φ500 | Φ108 | 110 | 500 | Φ121 | 110 | 550 | Φ127 | 110 | 550 |
| Φ600 | Φ108 | 110 | 500 | Φ121 | 110 | 550 | Φ127 | 110 | 550 | |
| 7 | Buckle type (A) | Φ89 drill pipe buckles are recommended |
Φ102/Φ114drill pipe buckles are recommended |
Φ114 drill pipe buckles are recommended |
||||||
| serial number |
1 | 11 | 12 | ||||
| Specification (D) | Dabber (B) | Length (C) | Length (E) | Dabber (B) | Length (C) | Length (E) | |
| 1 | Φ200 | Φ108 | 110 | 450 | |||
| 2 | 250 | ||||||
| 3 | Φ300 | ||||||
| 4 | Φ400 | Φ168 | 180 | 650 | Φ194 | 200 | 700 |
| 5 | Φ500 | 168 | 180 | 650 | Φ194 | 200 | 700 |
| 6 | 600 | Φ168 | 180 | 650 | 194 | 200 | 700 |
| 7 | Buckle type (A) | Φ114/Φ127 drill pipe buckles are recommended |
Φ140 drill pipe buckles are recommended |
||||
Available size
There are many advantages to choosing a groove reamer. When you shop around, keep in mind that many companies only offer casting options for models up to 16 inches. And we will provide a variety of size options and support customization, you can customize according to your needs.
Our Services
1. The drill pipe is strictly in accordance with API ISO9001 standard
2. If you find quality problems within one month after returning the package.
3. All fulfill obligations and responsibilities in strict accordance with the contract
4. 24 hours online customer service, please feel free to contact us.
