제품 상세 정보:
|
| 재료: | 플라스틱과 강철 | 기계 유형: | 리머 |
|---|---|---|---|
| 코팅: | 맞춤화됩니다 | 색: | 요구위에 코팅하기 |
| 상술: | Φ500 | 다지개: | Φ89 |
| 길이: | 80 / 450 | 버클 유형: | Φ73/76drill 파이프 버클은 권고됩니다 |
| 강조하다: | 연질층 개공구 Reamer,16 인치 개공구 리머,파인곳 없는 드릴링 지향성인 드릴 리머 |
||

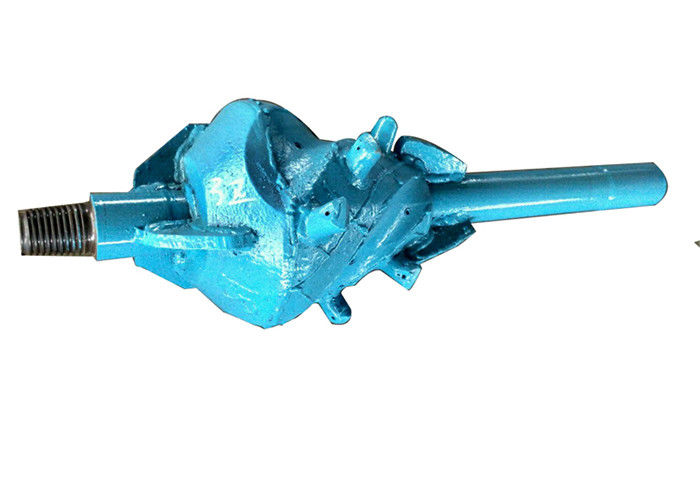

Hdd Reamer Hole Opener Reamer For Soft Layer
Product Description
Drum reamer, groove reamer and plate reamer
Drum reamer, groove reamer and plate reamer are used for trenchless drilling in soil
Floor. Our product specifications are drum reamer φ500mm-φ2000mm, flow reamer
φ200mm-φ2000mm and plate reamer φ300mm-φ2000mm.
| serial number |
1 | 2 | 3 | 4 | ||||||
| Specification (D) | Dabber (B) | Length (C) | Length (E) | Dabber (B) | Length (C) | Length (E) | Dabber (B) | Length (C) | Length (E) | |
| 1 | Φ200 | 60 | 50 | 280 | 68 | 50 | 330 | Φ76 | 60 | 400 |
| 2 | Φ250 | Φ60 | 50 | 280 | Φ68 | 50 | 330 | Φ76 | 60 | 400 |
| 3 | Φ300 | 60 | 50 | 280 | 68 | 50 | 330 | Φ76 | 60 | 400 |
| 4 | Φ400 | Φ60 | 50 | 280 | 68 | 50 | 330 | Φ76 | 60 | 400 |
| 5 | 500 | Φ60 | 50 | 280 | Φ68 | 50 | 330 | 76 | 60 | 400 |
| 6 | Φ600 | Φ60 | 50 | 280 | Φ68 | 50 | 330 | Φ76 | 60 | 400 |
| 7 | Buckle type (A) | Φ50 drill pipe buckles are recommended |
60 drill pipe buckles are recommended |
73 drill pipe buckles are recommended |
||||||
| serial number |
1 | 5 | 6 | 7 | ||||||
| Specification (D) | Dabber (B) | Length (C) | Length (E) | Dabber (B) | Length (C) | Length (E) | Dabber (B) | Length (C) | Length (E) | |
| 1 | Φ200 | Φ89 | 80 | 450 | 95 | 80 | 450 | Φ102 | 110 | 450 |
| 2 | Φ250 | Φ89 | 80 | 450 | 95 | 80 | 450 | Φ102 | 110 | 450 |
| 3 | Φ300 | Φ89 | 80 | 450 | 95 | 80 | 450 | Φ102 | 110 | 450 |
| 4 | Φ400 | Φ89 | 80 | 450 | 95 | 80 | 450 | Φ102 | 110 | 500 |
| 5 | Φ500 | Φ89 | 80 | 450 | 95 | 80 | 450 | Φ102 | 110 | 500 |
| 6 | Φ600 | Φ89 | 80 | 450 | Φ95 | 80 | 450 | Φ102 | 110 | 500 |
| 7 | Buckle type (A) | Φ73/76drill pipe buckles are recommended |
Φ83 drill pipe buckles are recommended |
Φ89 drill pipe buckles are recommended |
||||||
| serial number |
1 | 8 | 9 | 10 | ||||||
| Specification (D) | Dabber (B) | Length (C) | Length (E) | Dabber (B) | Length (C) | Length (E) | Dabber (B) | Length (C) | Length (E) | |
| 1 | Φ200 | Φ108 | 110 | 450 | ||||||
| 2 | 250 | Φ108 | 110 | 450 | ||||||
| 3 | Φ300 | 108 | 110 | 450 | Φ121 | 110 | 550 | |||
| 4 | Φ400 | Φ108 | 110 | 500 | Φ121 | 110 | 550 | Φ127 | 110 | 550 |
| 5 | Φ500 | Φ108 | 110 | 500 | Φ121 | 110 | 550 | Φ127 | 110 | 550 |
| Φ600 | Φ108 | 110 | 500 | Φ121 | 110 | 550 | Φ127 | 110 | 550 | |
| 7 | Buckle type (A) | Φ89 drill pipe buckles are recommended |
Φ102/Φ114drill pipe buckles are recommended |
Φ114 drill pipe buckles are recommended |
||||||
| serial number |
1 | 11 | 12 | ||||
| Specification (D) | Dabber (B) | Length (C) | Length (E) | Dabber (B) | Length (C) | Length (E) | |
| 1 | Φ200 | Φ108 | 110 | 450 | |||
| 2 | 250 | ||||||
| 3 | Φ300 | ||||||
| 4 | Φ400 | Φ168 | 180 | 650 | Φ194 | 200 | 700 |
| 5 | Φ500 | 168 | 180 | 650 | Φ194 | 200 | 700 |
| 6 | 600 | Φ168 | 180 | 650 | 194 | 200 | 700 |
| 7 | Buckle type (A) | Φ114/Φ127 drill pipe buckles are recommended |
Φ140 drill pipe buckles are recommended |
||||
Available size
There are many advantages to choosing a groove reamer. When you shop around, keep in mind that many companies only offer casting options for models up to 16 inches. And we will provide a variety of size options and support customization, you can customize according to your needs.
About us
Langfang Budweiser Drilling Co., Ltd. is located in the center of Beijing, Tianjin and Hebei-Yongqing Industrial Zone. Langfang, Hebei.
Our company is a drilling tool manufacturing enterprise integrating design, geology, wellbore, double-wall, petroleum, auger and other special drill pipes. And non-excavation special drilling tools, such as pilot bits, rotors, reamers, fuel economizers, pneumatic tampers, and pipe blasting machines.
We specially invited the well-known domestic expert Mr. Zhou Shengfeng as the general manager, he is a technical consultant engaged in HDD drilling tools and processing technology. A strong research team has laid the foundation for product quality, new product development and after-sales service.
