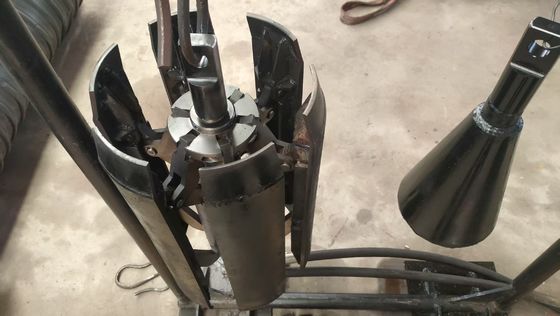

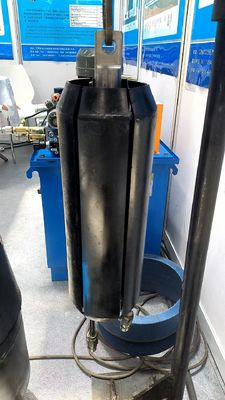

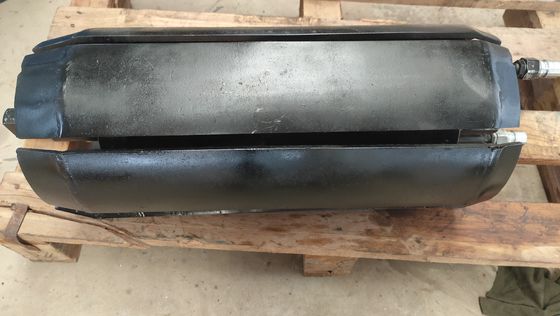

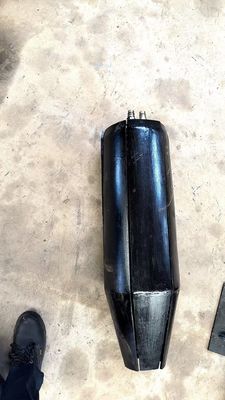

The six-sided expander is designed for rapid trenchless repair of localized pipe collapses. This innovative technology positions jacking equipment precisely at the collapse site via traction, using hydraulically driven, synchronously expanding jack plates to restore pipe integrity.
Trenchless repair of localized collapses, deformations, and misalignments in:
Ideal for urban underground water supply/drainage, gas, power, and communication networks.
| No. | Item | Unit | LXD200 | LXD280 | LXD315 | LXD420 | LXD560 |
|---|---|---|---|---|---|---|---|
| 1 | Rated power | KN | 65 | 105 | 165 | 250 | 290 |
| 2 | Hydraulic station power | KW | 1.5 | 2.5 | 2.5 | 4 | 4 |
| 3 | Rated working pressure | MPa | 25 | 25 | 25 | 25 | 25 |
| 4 | Minimum diameter after contraction | mm | 120 | 160 | 200 | 260 | 275 |
| 5 | Maximum diameter after expansion | mm | 200 | 280 | 315 | 420 | 560 |
| 6 | Suitable pipe diameter | mm | 150-200 | 200-280 | 250-315 | 300-420 | 350-560 |
| 7 | Weight | kg | 15 | 30 | 50 | 90 | 130 |
| 8 | Top surface length | mm | 300 | 400 | 410 | 515 | 630 |
| 9 | Main unit length | mm | 348 | 465 | 495 | 645 | 740 |
Our standard production time is approximately 20 days. For items in stock, we can ship within 3 business days.
We conduct rigorous quality inspections and performance tests on every drill rod prior to shipment to guarantee reliability and durability.
Yes, we welcome sample orders as an opportunity for you to evaluate our product quality before committing to larger quantities.
Yes, all our drill pipes and casings undergo professional heat treatment to enhance their structural strength and operational performance.
Yes, each drill pipe and casing receives anti-rust paint or anti-corrosion oil coating before shipping. Galvanized options are available upon request.
