제품 상세 정보:
|
| 상품 이름: | 플라이 커터 리머 | 타입: | 리머 |
|---|---|---|---|
| 기계 유형: | 드릴 툴 | 인증: | API |
| 재료: | 카바이드 /고 망간강, 철강, 커터 | 처리식: | 캐스팅 |
| 사용: | 구조 | 적용 가능한 산업: | 건축 작업, 에너지 & 광업 |
| 외경: | 200mm-1800mm | 색: | 검정색 |
| 연결: | 짜맞춘 회전 또는 풀러 | 바위층을 충당하세요: | 부드러운 토층 위 |
| 스레드: | 드릴 로드에 의존합니다 | ||
| 강조하다: | 36 인치 플라이 커터 리머,200 밀리미터 플라이 커터 리머,36 인치 방향 천공 hdd 후부 확공기 |
||

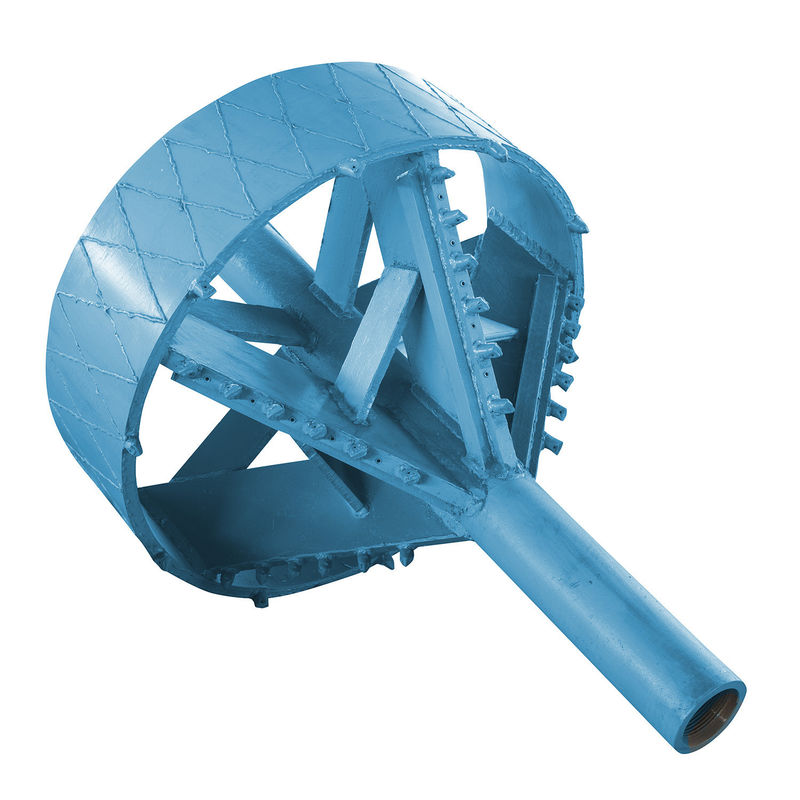

Horizontal Directional Drilling Drifferent Soil And Sand Formation Fly Cutter Hdd Reamer
Product Description
1. Steel grade: S135
2. Specification: 42-140mm
3. Thread: For Vermeer, Ditch witch, Drillto
We can manufacture all kinds of drill rod as per customer's requirments.
| Cutting Reammer parameter list | |||||||||||||
| NO. | 1 | 2 | 3 | 4 | 5 | ||||||||
| specification D | dabber B | length C | length E | dabber B | length C | length E | dabber B | length C | length E | dabber B | length C | length E | |
| 1 | Φ300 | Φ89 | 80 | 450 | Φ95 | 80 | 450 | Φ108 | 110 | 500 | |||
| 2 | Φ350 | Φ89 | 80 | 450 | Φ95 | 80 | 450 | Φ108 | 110 | 500 | |||
| 3 | Φ400 | Φ89 | 80 | 450 | Φ95 | 80 | 450 | Φ108 | 110 | 500 | Φ127 | 110 | 550 |
| 4 | Φ450 | Φ89 | 80 | 450 | Φ95 | 80 | 450 | Φ108 | 110 | 500 | Φ127 | 110 | 550 |
| 5 | Φ500 | Φ89 | 80 | 450 | Φ95 | 80 | 450 | Φ108 | 110 | 500 | Φ127 | 110 | 550 |
| 6 | Φ550 | Φ89 | 80 | 450 | Φ95 | 80 | 450 | Φ108 | 110 | 500 | Φ127 | 110 | 550 |
| 7 | Φ600 | Φ89 | 80 | 450 | Φ95 | 80 | 450 | Φ108 | 110 | 500 | Φ127 | 110 | 550 |
| 8 | Φ650 | Φ89 | 80 | 450 | Φ95 | 80 | 450 | Φ108 | 110 | 500 | Φ127 | 110 | 550 |
| 9 | Φ700 | Φ89 | 80 | 450 | Φ95 | 80 | 450 | Φ108 | 110 | 500 | Φ127 | 110 | 550 |
| 10 | Φ750 | Φ95 | 80 | 450 | Φ108 | 110 | 500 | Φ127 | 110 | 550 | |||
| 11 | Φ800 | Φ95 | 80 | 450 | Φ108 | 110 | 500 | Φ127 | 110 | 550 | |||
| 12 | Φ850 | Φ95 | 80 | 450 | Φ108 | 110 | 500 | Φ127 | 110 | 550 | |||
| 13 | Φ900 | Φ95 | 80 | 450 | Φ108 | 110 | 500 | Φ127 | 110 | 600 | |||
| 14 | Φ950 | Φ108 | 110 | 500 | Φ127 | 110 | 600 | ||||||
| 15 | Φ1000 | Φ108 | 110 | 500 | Φ127 | 110 | 600 | ||||||
| 16 | Φ1050 | Φ127 | 110 | 600 | |||||||||
| 17 | Φ1100 | Φ127 | 110 | 600 | |||||||||
| 18 | Φ1150 | Φ127 | 110 | 600 | |||||||||
| 19 | Φ1200 | Φ127 | 110 | 600 | |||||||||
| 20 | Φ1250 | ||||||||||||
| 21 | Φ1300 | ||||||||||||
| 22 | Φ1350 | ||||||||||||
| 23 | Φ1400 | ||||||||||||
| 24 | Φ1450 | ||||||||||||
| 25 | Φ1500 | ||||||||||||
| 26 | Buckle type | Φ73 drill pipe buckles are recomended |
Φ83 drill pipe buckles are recommended |
Φ89 drill pipe buckles are recommended |
Φ102/Φ114drill pipe buckles are recommended |
||||||||
| Serial number |
1 | 6 | 7 | 8 | ||||||
| Specification D | Dabber B | Length C | Length E | Dabber B | Length C | Length E | 芯轴B dabber |
Length C | Length E | |
| 1 | Φ300 | |||||||||
| 2 | Φ350 | |||||||||
| 3 | Φ400 | Φ168 | 180 | 650 | Φ168 | 180 | 650 | |||
| 4 | Φ450 | Φ168 | 180 | 650 | Φ168 | 180 | 650 | |||
| 5 | Φ500 | Φ168 | 180 | 650 | Φ168 | 180 | 650 | Φ194 | 200 | 700 |
| 6 | Φ550 | Φ168 | 180 | 650 | Φ168 | 180 | 650 | Φ194 | 200 | 700 |
| 7 | Φ600 | Φ168 | 180 | 650 | Φ168 | 180 | 650 | Φ194 | 200 | 700 |
| 8 | Φ650 | Φ168 | 180 | 650 | Φ168 | 180 | 650 | Φ194 | 200 | 700 |
| 9 | Φ700 | Φ168 | 180 | 650 | Φ168 | 180 | 650 | Φ194 | 200 | 700 |
| 10 | Φ750 | Φ168 | 180 | 650 | Φ168 | 180 | 650 | Φ194 | 200 | 700 |
| 11 | Φ800 | Φ168 | 180 | 650 | Φ168 | 180 | 650 | Φ194 | 200 | 700 |
| 12 | Φ850 | Φ168 | 180 | 650 | Φ168 | 180 | 650 | Φ194 | 200 | 700 |
| 13 | Φ900 | Φ168 | 180 | 650 | Φ168 | 180 | 650 | Φ194 | 200 | 700 |
| 14 | Φ950 | Φ168 | 180 | 650 | Φ168 | 180 | 650 | Φ194 | 200 | 700 |
| 15 | Φ1000 | Φ168 | 180 | 650 | Φ168 | 180 | 650 | Φ194 | 200 | 700 |
| 16 | Φ1050 | Φ168 | 180 | 650 | Φ168 | 180 | 650 | Φ194 | 200 | 700 |
| 17 | Φ1100 | Φ168 | 180 | 650 | Φ168 | 180 | 650 | Φ194 | 200 | 700 |
| 18 | Φ1150 | Φ168 | 180 | 650 | Φ168 | 180 | 650 | Φ194 | 200 | 700 |
| 19 | Φ1200 | Φ168 | 180 | 650 | Φ168 | 180 | 650 | Φ194 | 200 | 700 |
| 20 | Φ1250 | Φ168 | 180 | 650 | Φ168 | 180 | 650 | Φ194 | 200 | 700 |
| 21 | Φ1300 | Φ168 | 180 | 650 | Φ168 | 180 | 650 | Φ194 | 200 | 700 |
| 22 | Φ1350 | Φ168 | 180 | 650 | Φ168 | 180 | 650 | Φ194 | 200 | 700 |
| 23 | Φ1400 | Φ168 | 180 | 650 | Φ168 | 180 | 650 | Φ194 | 200 | 700 |
| 24 | Φ1450 | Φ168 | 180 | 650 | Φ194 | 200 | 700 | |||
| 25 | Φ1500 | Φ168 | 180 | 650 | Φ194 | 200 | 700 | |||
| 26 | Buckle type | Φ114 drill pipe buckles are recommended |
Φ127 drill pipe buckles are recommended |
Φ140 drill pipe buckles are recommended |
||||||
The characteristics of "BAIWEI" drill rods
Two force regions
The threads of the non-dig drill pipe produced in the company have two Force regions. Such structure is designed to reduce the resistance that A drill faces during the construction process. The pipes are designed to handle high torque while retaining a large inside Diameter for superior drilling fluid flow so that the threads will not deform.
Optimal design
Drill rods through the dispersion of equal strength And stress optimal design, can give full play to the Potential of drill material.
Forged connector
Connector material had been forged, that have Improved material density, changed the fibrous Texture of the material, so that the general mechanical Properties of the material have been more improved Nitride, phosphide or copper plating processing Nitride, phosphide or copper plate processing to the rod ends Have ensured thread anti-corrosion, anti-bonding, and improved Joint surface fatigue resistance.
Upsetting & thicking
Upsetting & thicking to the rods have improved The metallurgical structure and enhanced the Impact toughness, that have ensured comprehensive Mechanical properties and the friction weld seals Not be broken.
FAQ
Q: What is your delivery time?
A: It usually takes 20 days to produce. Within 3 days (if there is stock).
Q: How to control the quality?
A: Before shipping, we should check and test each drill rod.
Q: Do you agree to order samples?
A: Yes, we welcome your sample order to test our quality.
Q: Has your drill pipe been heat treated?
A: Yes, our heat treatment of drill pipe and casing.
Q: Does your drill pipe have anti-rust function?
A: Yes, each drill pipe and casing will be anti-rust with paint or anti-corrosion oil before transportation. If you need galvanized pipe, please contact us.
